Specifications of the RC400R G5

Format 19 (1 HE)"
Assembly Premium telescopic slides
Dimensions (W/H/D) 43,0cm x 4,4cm x 47,5cm
User (max.) 500
Hard disc SSD, Hardware Raid 1
Temperature range (operation) 0°C - 40°C
Temperature range (storage) -20°C - 60°C

Performance of the RC400R G5

Firewall throughput 25 GBit/s
VPN throughput 3.5 GBit/s
HTTP proxy with AV 1.4 GBit/s
AES hardware accelerator yes (Intel)
Power supply internal, redundant, hot-swappable
Power supply unit (internal) 2x 110-240V (50-60Hz)
Power consumption ~360 W

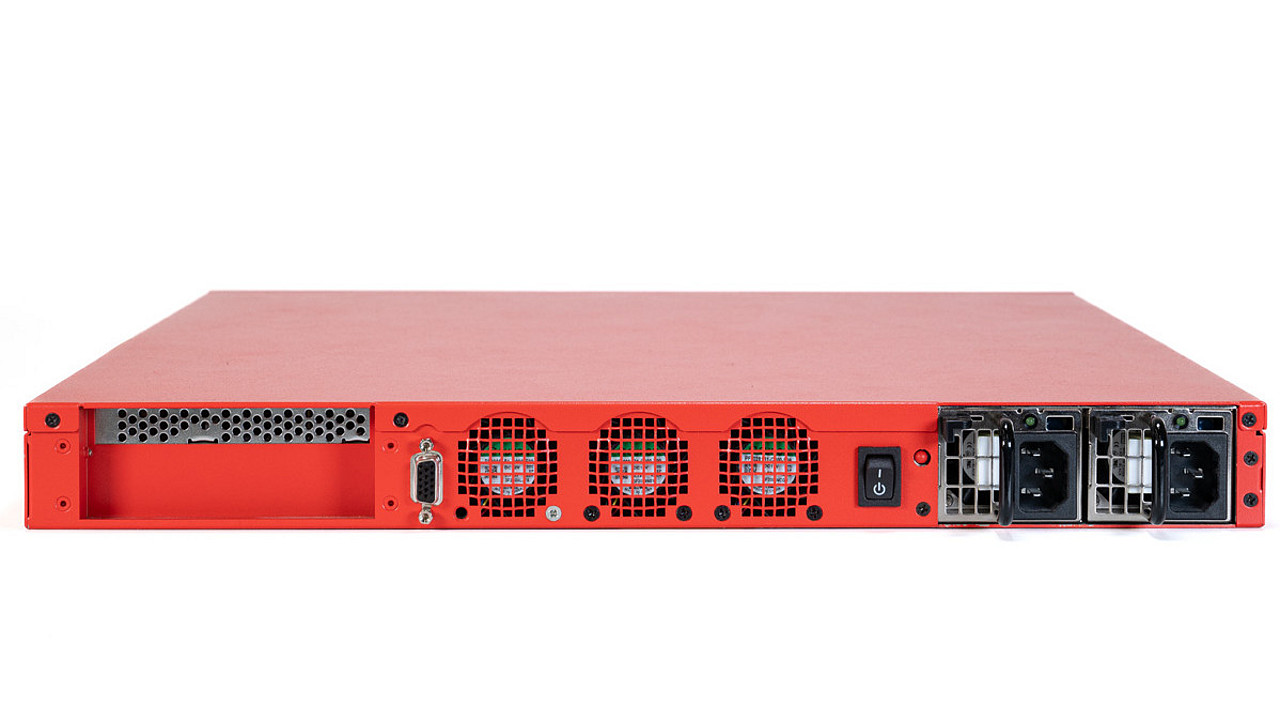

Connections of the RC400R G5

LAN ports 8x 1 GBit/s
SFP ports (OnBoard) 2x 1 GBit/s
Expansion slots 2x
Connections - VGA (back)
- 2x USB 3.0
- Console port
