The Securepoint RC1000R G5 firewall offers a powerful and reliable solution for IT security in companies, public authorities and hospitals. Equipped with advanced technology and a wide range of functions such as firewall, VPN, intrusion detection/prevention, antivirus and content filtering, the RC1000R G5 effectively protects your network from online threats.

The user-friendly interface makes it easy to manage all security features and gives you in-depth insights into security-related incidents.

The Securepoint RC1000R G5 can be easily combined with other IT security technologies to meet the dynamic requirements of your organisation. Rely on Securepoint's proven security expertise and protect your network with the RC1000R G5 firewall.

Specifications of the RC1000R G5

The RC1000R G5 UTM firewall is designed for up to 1,000 users, making it the ideal solution for companies, public authorities and healthcare facilities.

The rackmount format enables installation in 19-inch cabinets. Matching telescopic rails, which allow the firewall to be mounted easily and securely in the rack, are included in the scope of delivery. These high-quality rails ensure that the device remains stable and accessible while providing optimum ventilation. So you can be sure that your UTM firewall is always operating under the best conditions.

Functions of the RC1000R G5

The RC1000R G5 offers comprehensive protection with a wide range of integrated functions. It has powerful firewall protection that protects your network from unauthorised access. An intrusion prevention system (IPS) is also integrated, which recognises and blocks attacks in real time.

VPN support ensures secure remote access to your network, while web filtering blocks unwanted content and thus protects your employees. In addition, the firewall offers effective antivirus protection that scans incoming and outgoing data traffic for malware. With these versatile UTM functions, the RC1000R G5 guarantees the best protection for your company.

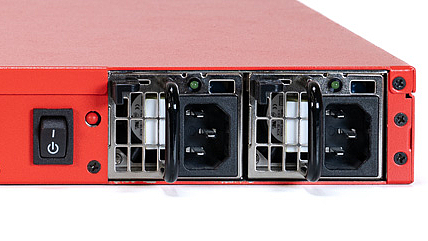

In focus: Redundant power supply units

The redundant power supply units ensure a stable supply to the UTM firewall even if one power supply unit fails. Thanks to the “hot swappable” function, the defective power supply unit can be replaced during operation. This is a decisive advantage, especially in large server systems, as there is no need for a complete shutdown.



Discover ‘Luna’ - the exclusive operating system

Luna offers a user-friendly interface and powerful features that are constantly evolving to meet the latest security requirements. With regular updates and innovative features, Luna ensures that your UTM firewall is always optimally protected and functions smoothly.



Find out more about the benefits and possibilities of Luna

Connections of the RC1000R G5

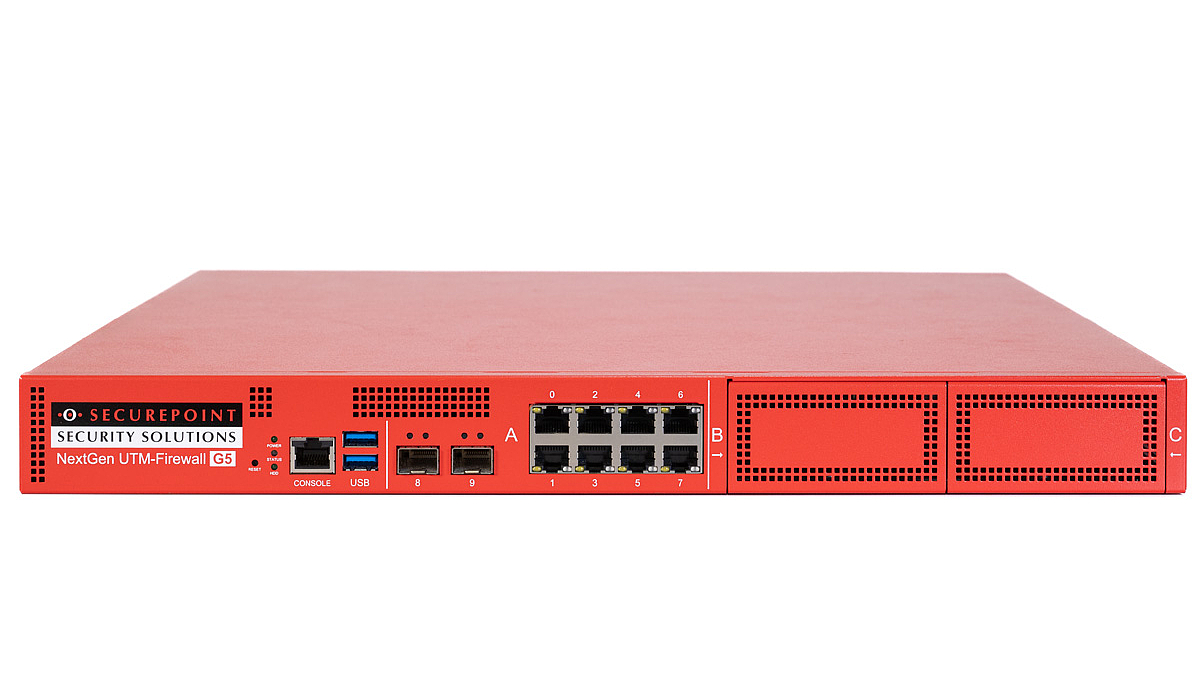

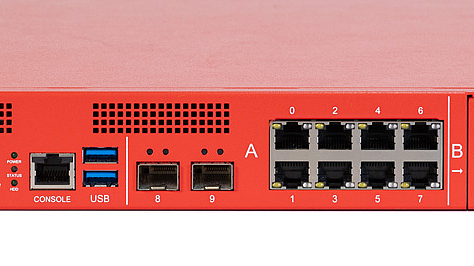

The RC1000R G5 is equipped with a variation of connections that enable a flexible network connection. It has eight LAN ports that ensure a reliable connection to various devices in the network. There are also two SFP ports that can be used for high-speed connections. A VGA port is located on the rear of the firewall, while the front is equipped with two USB 3.0 ports and a console port, making it easier to manage and access the device.

In addition, the RC1000R G5 offers the option of being upgraded with two expansion cards. These expansion cards can provide either eight additional LAN ports or two SFP+ ports. This means that the firewall can be expanded to a total of up to 24 LAN ports or four SFP+ ports. Of course, there is also the option of using just one expansion card at a time to customise connectivity as required.

Optional accessories

Ansicht einer Erweiterungskarte mit acht LAN-Anschlüssen (RJ45)

LAN expansion card

LAN expansion card with 8x 1GBit/s (RJ-45)

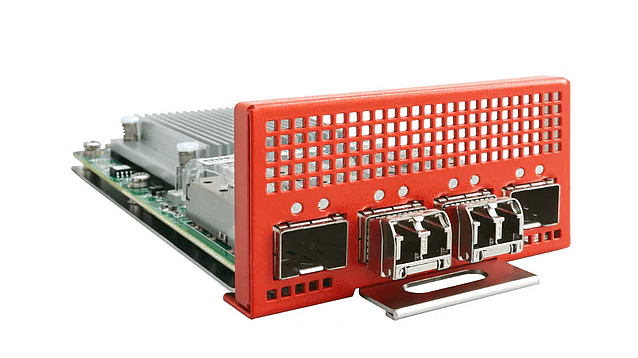

Image of the SFP expansion card

SFP expansion card

SFP expansion card with up to 4x 10 GBit/s (SFP+)

4G/ LTE kit with its packaging in the background

4G/ LTE kit

4G/LTE modem in USB housing (including two antennas)
